Our philosophy is to provide the best image quality at the lowest radiation possible.

OVERVIEW

Cone-beam computed tomography (CBCT) scans generate multiple projections that are immediately processed into 3-D images. The images can be transferred online or sent on CD, along with the radiology report.

The clinic is open to the public. To schedule an appointment, call 734-764-2700.

What are some typical uses of CBCT?

CBCT is used by general dentists and specialists to improve diagnosis and treatment planning in the following cases:

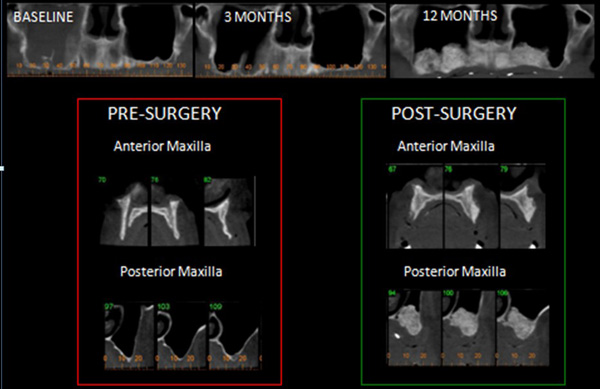

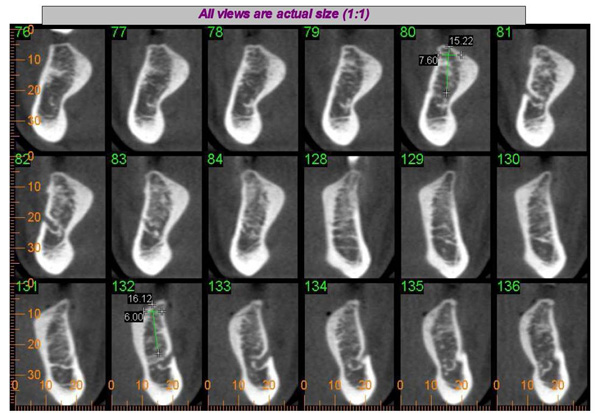

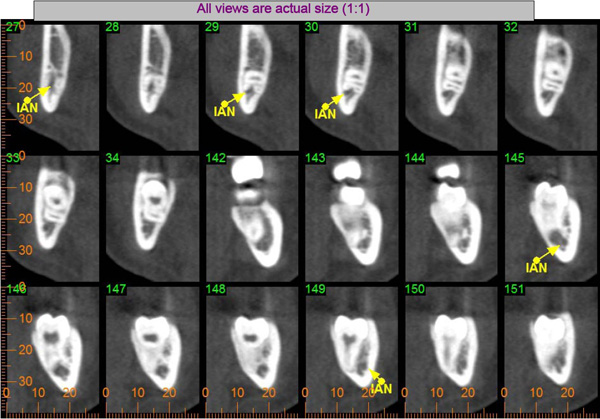

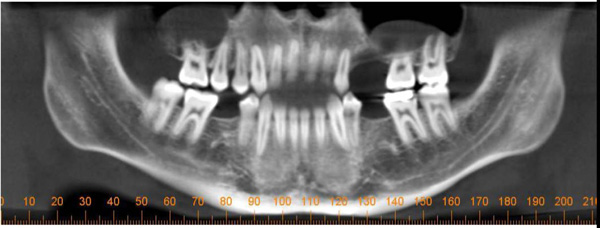

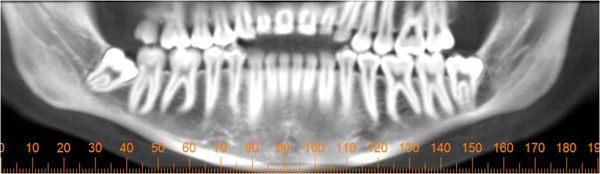

Dental implants	Location of anatomic structures: mandibular canal, submandibular fossa, incisive canal, maxillary sinus Size and shape of ridge, quantity and quality of bone Number, orientation of implants Need for bone graft, sinus lift Use of implant planning software
Oral and maxillofacial surgery	Relationship of third molar roots to mandibular canal Localization of impacted teeth, foreign objects Evaluation of facial fractures and asymmetry Orthognathic surgery planning

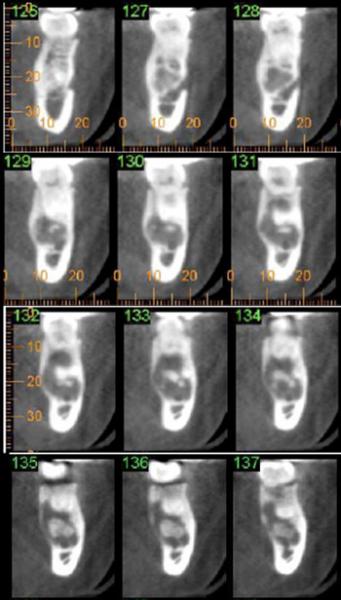

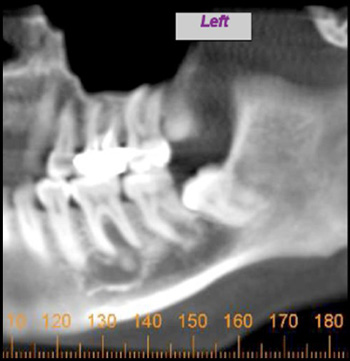

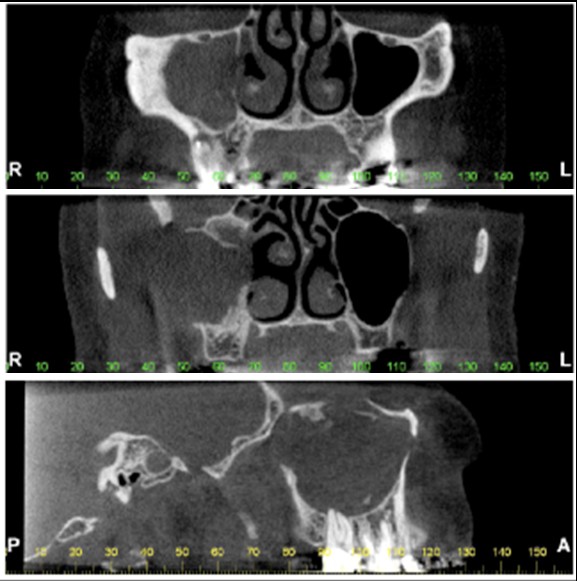

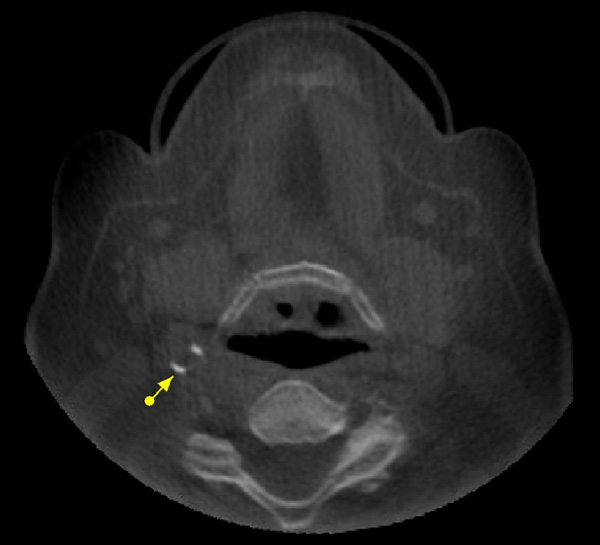

Oral and maxillofacial pathology	Localization and characterization of lesions in the jaws Effect of lesion on jaw in 3rd dimension: expansion, cortical erosion, bilateral symmetry Relationship of lesion to teeth and other structures

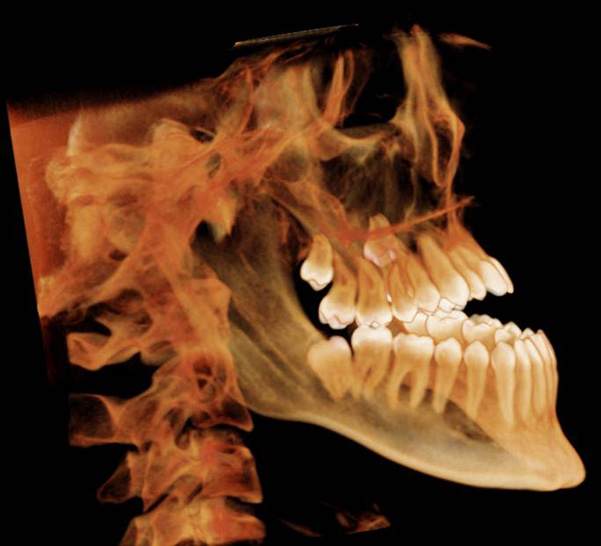

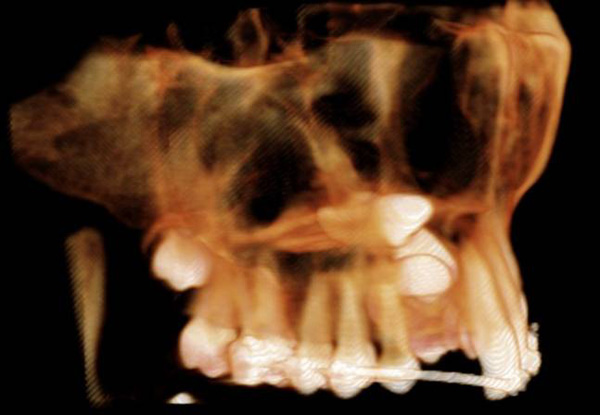

Orthodontics	Treatment planning for complex cases when 3D information needed to supplement (or substitute for) other imaging Patients with cleft palate Impacted teeth Root angulation, root resorption

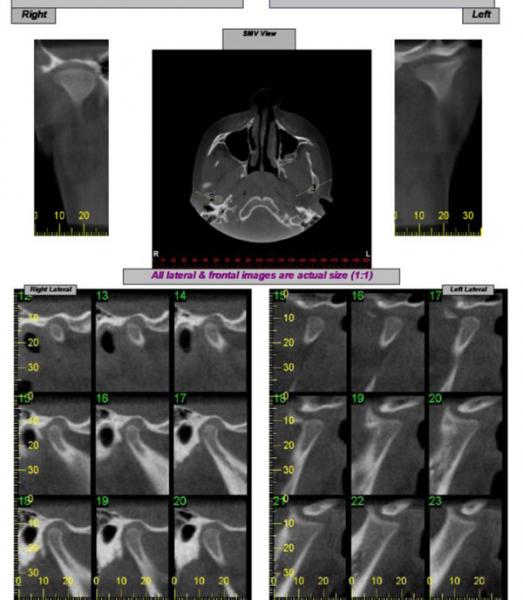

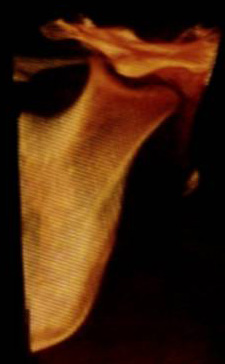

Temporomandibular joint	Osseous structures of TMJ Relationship of condyle and fossa in 3D

What are the advantages of CBCT?

Lower radiation dose than medical CT	Equivalent to ~1 Full mouth series of radiographs (FMX) or 6-7 panoramic radiographs Thyroid shield can be used in many cases
Comfortable for patient	Open environment – no claustrophobia Patient seated, facing out Only 20 second scan
Wheelchair accessible
Images available almost immediately on screen
Images can be imported into other software

What is the radiation dose from a CBCT scan?

i-CAT FOV	Effective dose (µSv) ICRP 1990	Effective dose (µSv) ICRP 2007
6 cm maxilla	9.7	36.5
6 cm mandible	23.9	75.3
8 cm both jaws	31.8*	100.4*
13 cm full head	39.5	110.5

* Estimated

JA Roberts et al. Effective dose from cone beam CT examinations in dentistry. BJR 82 2009):35-40.

An average person in the United States receives approx. 8 µSv/day of natural background radiation (3,000 µSv/year)

What are the main differences between a CBCT scan and a medical CT scan?

Radiation Dose:

Region scanned	CBCT effective dose (µSv) ICRP 2007	Medical CT effective dose (µSv) ICRP 2007
Mandible	75.3	503*
Full head	110.5	1,088.3*

* Average from 3 scanners (Somaton VolumeZoom 4, Somatom Sensation 16, and Philips Mx8000 IDT)

M Loubele et al. Comparison between effective radiation dose of CBCT and MSCT scanners for dentomaxillofacial applications. European Journal of Radiology 2009:71(3);461-8.

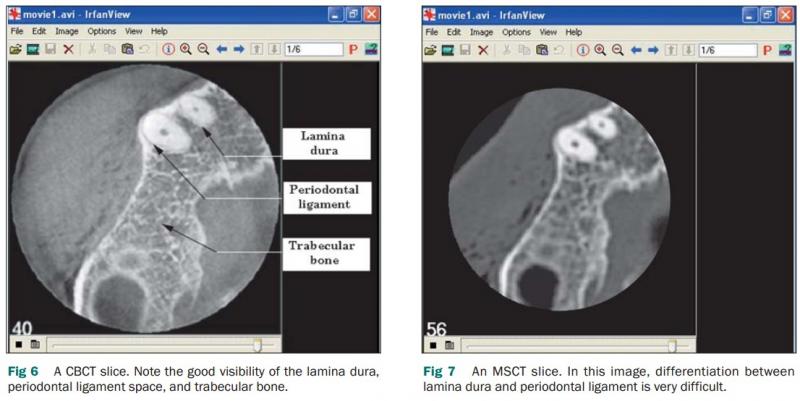

Image resolution: For hard tissues and teeth, CBCT offers higher resolution and image sharpness compared to medical CT (Multi-Slice CT or MSCT).

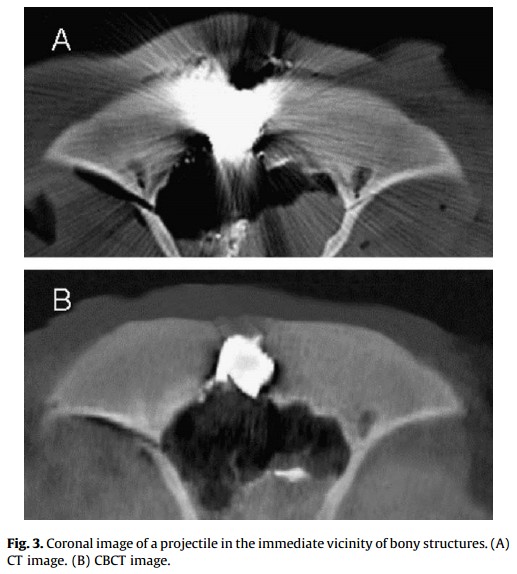

Metal artifact reduction: CBCT offers better metal artifact reduction compared to medical CT. This is important because many patients have metallic crowns or restorations that cause streaking artifacts that may interfere with the visualization of the region of interest.

C von See et al. Forensic imaging of projectiles using cone-beam computed tomography. Forensic Science International 190 2009:38-41.
Soft tissue contrast: One of the limitations of CBCT is the poor soft tissue contrast compared to medical CT or Magnetic Resonance Imaging (MRI). While CBCT is appropriate to evaluate osteoarthritic changes of the temporomandibular joint (TMJ), it is not suited for evaluation of TMJ disc displacement. Similarly, tumors within the soft tissue cannot be adequately evaluated using CBCT.

CBCT PRACTICE

The CBCT Imaging Service is dedicated to meeting the needs of referring doctors and patients. As oral and maxillofacial radiologists, the CBCT team uses both technology and research in their approach to patient care. Their professionalism and expertise have positioned the clinic as one of the leading CBCT imaging services in the State of Michigan. They offer multiple scan options, a variety of image output formats and deliver detailed reports in a timely manner.

Oral & Maxillofacial Radiologists

Erika Benavides

Clinical Professor of Dentistry

734-936-0051 | [email protected]

Dr. Benavides is a diplomate of the American Board of Oral and Maxillofacial Radiology, and serves as a director of the ABOMR. She obtained her dental degree at the University of Valle in Cali, Colombia and completed an externship program in the Craniofacial Genetics Department at the Medical University of South Carolina. Subsequently, at the University of Missouri Kansas City and the Truman Medical Center she completed a General Practice Residency (GPR) program and also received her oral and maxillofacial radiology training and a PhD in Oral Biology and Biomedical Engineering. Dr. Benavides has published multiple peer-reviewed papers on the multidisciplinary aspects of diagnostic imaging. She is the recipient of the 2012 Charles E. English Annual Award for the most significant article in the Clinical Science and Techniques section of the Journal of Implant Dentistry. Her research interests include the integration of emerging technology to evaluate tissue properties and structure. Her faculty practice is dedicated to cone-beam computed tomography (CBCT).

Fabiana Naomi Soki

Clinical Assistant Professor of Dentistry

734-615-5641 | [email protected]

Dr. Fabiana Soki is a Clinical Assistant Professor of Oral and Maxillofacial Radiology in the Department of Periodontics and Oral Medicine and Division of Oral Pathology/Medicine/Radiology. Dr. Soki received her dental degree from the University of Sao Paulo School of Dentistry in Brazil. She received her PhD in Oral Health Sciences from the University of Michigan School of Dentistry. She completed a residency and earned a master’s degree in Oral and Maxillofacial Radiology at the University of Connecticut.

Dr. Soki has received numerous awards, including the Young Investigator Award from the American Society for Bone and Mineral Research, and she has numerous peer-reviewed publications. Her research interests are focused on bone biology and advanced imaging applications in oral and maxillofacial radiology.

Radiology Technologists

Keely Russell

Dental Assistant Senior

734-764-2700 | [email protected]

Keely Russell is a senior dental assistant in the department of Periodontics and Oral Medicine. Keely has been in the dental field for over 20 years; obtaining her radiography certification from the state of Michigan in 1996. Her background and experience includes general dentistry, endodontics, orthodontics, pediadontics and periodontics. Keely received specialized training for CBCT scanning at the University Of Michigan School Of Dentistry. She is currently continuing her studies at Washtenaw Community College and Ferris State University in the field of Health Care/Business Management.

Veronica Slayton

Clinic Coordinator

734-764-9148 | [email protected]

Veronica is a senior dental assistant in the Graduate Periodontics Department. She has been in the dental field for 18 years; obtaining her radiography certification and R.D.A. from the State of Michigan in 2004. She completed the Dental Assisting program at Washtenaw Community College. Her experience includes general dentistry, and periodontics. Veronica received specialized training for Cone-Beam Computed Tomography in private practice from Carestream and Planmeca.

REFERRALS

Referring doctors, please fill out the CBCT Referral Form.

SERVICES

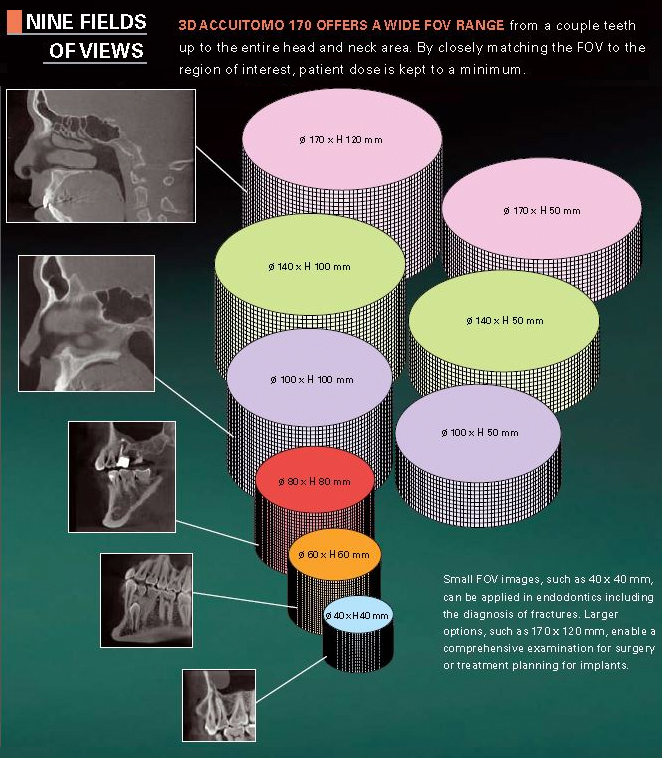

We customize each CBCT scan on a case-by-case basis, with the priniciple of As Low As Reasonably Achievable (ALARA) radiation protection. We follow strict calibration and quality assurance protocols and limit the scan to the particular area of interest by using the appropriate fields of view.

Delivery of CBCT scans

Written radiology report provides a summary of the radiographic findings, measurements in the areas of interest (if requested) and selected panoramic, cross-sectional, multiplanar, and 3-D views of the most relevant findings.

DICOM files of the scan can be transferred online or a CD can be mailed to the referring doctor’s office upon request.

Program Goals

Implant treatment planning
Bone grafting evaluation

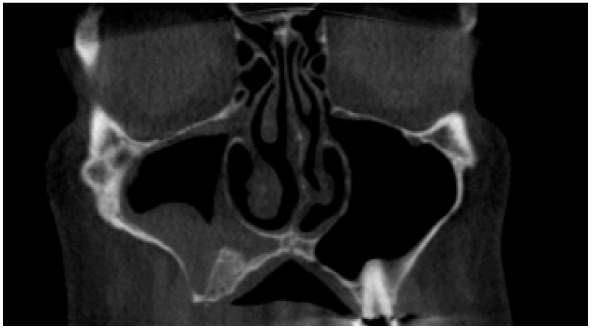

Maxillary sinus evaluation prior to sinus augmentation procedure
